炭黑过滤机

炭黑过滤机

发布时间:2017/11/02 点击量:

一、简介
炭黑过滤机是我公司在消化吸收国外先进技术,采用已生产过的外滤式真空转鼓过滤机的合理结构,研制开发而成的固液分离设备。具有结构紧凑、性能先进、操作自动连续、运转无级变速、使用维修方便等特点。
Carbon black filter is a kind of solid liquid separation equipment developed by our company in digesting and absorbing foreign advanced technology and adopting the reasonable structure of the vacuum drum filter which has been produced. It has the characteristics of compact structure, advanced performance, automatic continuous operation, stepless speed change, convenient operation and maintenance, etc..

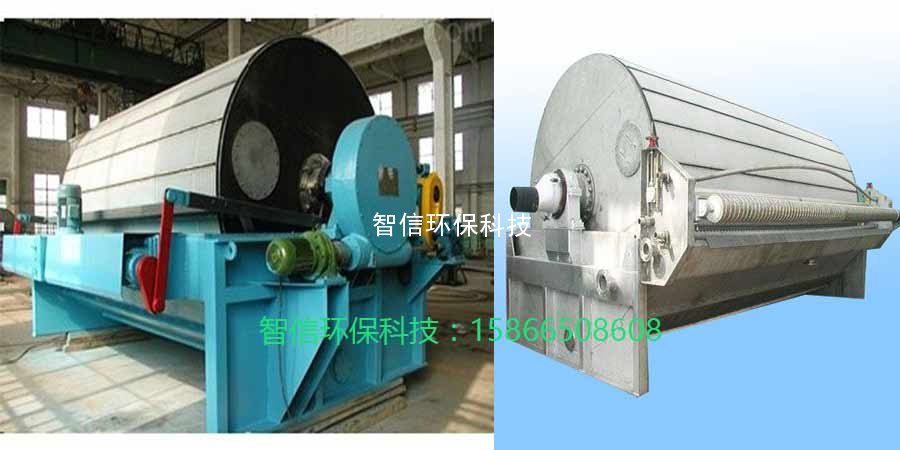

炭黑过滤机
二、工作原理
炭黑真空转鼓过滤机系刮刀卸料的固液分离设备。过滤时,在真空抽吸作用下,分离滤液透过滤布、滤室与滤管向分配阀汇集,经自动排放缸排出,而固体颗粒被截留在滤布表面上形成滤饼,滤饼转出液面后,相继进入脱水区与卸料区。处于卸料区的滤饼,在压缩空气的反吹下被吹起由刮刀卸除,至此,一个过来循环即告完成。然后转入滤浆内,开始下一个工作循环。
The solid-liquid separation equipment of carbon black vacuum drum filter scraper discharging system. In filtering, vacuum suction effect, the filtrate is separated through filter cloth and the filter chamber with the filter to the distribution valve together, is discharged through the automatic discharge cylinder, while the solid particles are trapped in the filter cake is formed on the surface of the filter cake from the liquid surface, have entered the area and discharge area of dehydration. The filter cake in the unloading area is blown off by the scraper under the back blowing of the compressed air, so that a cycle is finished. And then transferred to the slurry, start the next cycle.

三、应用领域
石化、矿山、化工等行业颗粒粒度细、粘度不大物料的脱水过滤
Dewatering and filtration petrochemical, mining and chemical industries, fine particle size low viscosity materials

四、产品特点
1.个性化的设计,满足不同客户需求
 personalized design, to meet different customer needs
2.处理量大、产品水分低、回收率高
Large capacity, low moisture, high recovery rate
3.采用平面接触式分配阀,密封严密,寿命长
Tight sealing by plane contact type distributing valve, long service life.
4.拆卸、维修方便,故障率低,使用寿命长
Disassembly, convenient maintenance, low failure rate, long service life
5.全自动化、智能化控制,操作简便,性能可靠
Full automation, intelligent control, simple operation, reliable performance
